The FMCW & FMICW Radar Model

The FMCW & FMICW Radar Model

FMCW (frequency modulated continuous wave) and FMICW (frequency modulated interrupted wave) radars have received a great deal of popularity by the military and automotive industries by virtue of their simplicity, high reliability and low cost.

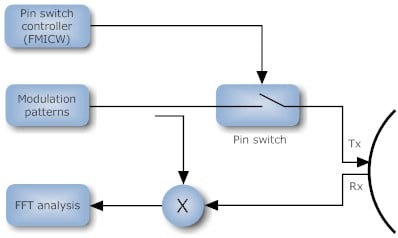

A simplified model of an FMCW / FMICW system is shown here.

Figure 1 – A simplified model of an FMCW/ FMICW radar system

Analyzing this figure, it can be seen that when operating the radar in FMCW mode (i.e., the PIN switch is permanently closed) the transmitted modulation waveforms are mixed with delayed replicas (multiple targets) via the mixer, and then analysed by an FFT algorithm. However, when FMICW is used, the transmit path (Tx) is interrupted by the PIN switch switching on and off. Notice that in this case, the mixer still uses the ‘unswitched’ transmit waveform in order to obtain the beat frequency waveform. FMICW systems have the advantage of relaxing the isolation requirements between transmitter and receiver, but have the disadvantage of limited range due to the switching constraints.

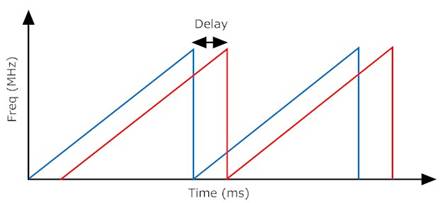

A plot of modulation patterns vs. time for a radar system receiving a modulation pattern from a target is shown in Figure 2. Analyzing Figure 2, it can be seen that the received waveform (red) is simply a delayed replica of the transmitted waveform (blue). Also notice that the received modulation pattern could very well be an unwanted interfering radar signature, as well as a signature from a legitimate target – the radar system has no way of knowing!

Figure 2 – FMCW radar concept

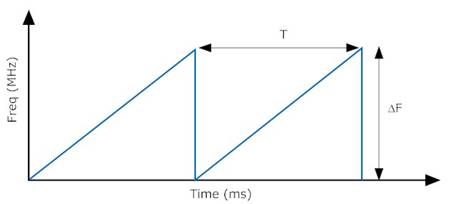

Notice that each sawtooth modulation waveform is categorised by a sweep time (\(T\)) and a sweep frequency (\(\Delta F\)), as shown in Figure 3.

Figure 3

Simply estimating the delay between transmitted and received waveforms leads to an estimate of range and beat frequency (\(f_b\)).

\(\displaystyle f_b=\frac{\Delta F}{T} \times \frac{2R}{c} \), \(\,\,\,\,\displaystyle delay = \frac{2R}{c}\)

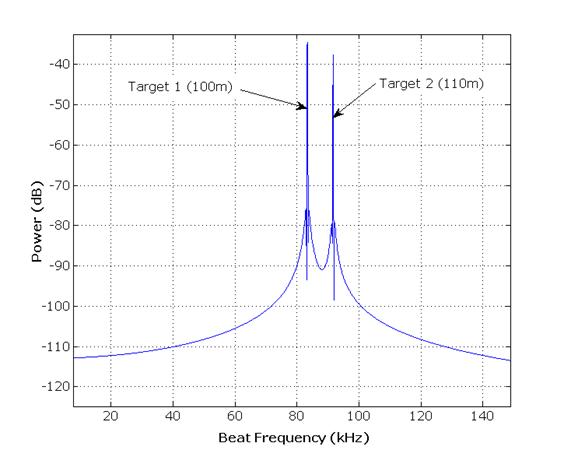

After implementing the model and equations in Matlab®, a simulation can be performed on the time domain signals. Thus, the time domain beat frequency signal can easily be transformed into the frequency domain (via an FFT) for analysis, as shown in Figure 4. Analyzing figure 4, it can be seen that for a two target scenario (\(\Delta F = 500 MHz\) and \( T = 4ms\)) the plotted frequencies concur with the FMCW equations shown above.

Figure 4
