The signal analyser allows engineers to test their design on audio, real (user) data or synthetic data via the built-in signal generator. Real-time; time and frequency domain

Real-time signal analysis

Import your own datasets or use the inbuilt signal generator to generate test signals, and validate your filter performance in real-time via the advanced signal analyser.

Time and frequency domain analysis

Integrated signal generator

Import your own test data (csv or txt) or simulate a signal

Streaming and Block based modes

Streaming audio support (up to 48kHz)

signal analyser

Default data playback is implemented as streaming data, providing a simple way of assessing the filter’s dynamic performance, which is especially useful for fixed point implementations.

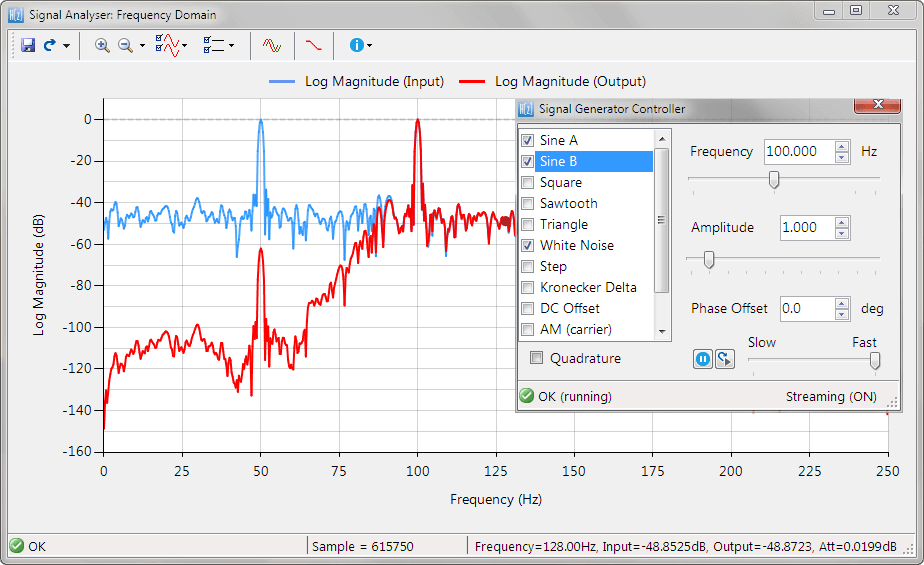

Both frequency domain and time domain charts are fully supported, allowing for design verification via transfer function estimation using the cross and power spectral density functions. As with all other charts, the signal analyser chart fully supports advanced zooming and panning, as well as comprehensive chart data file export options.

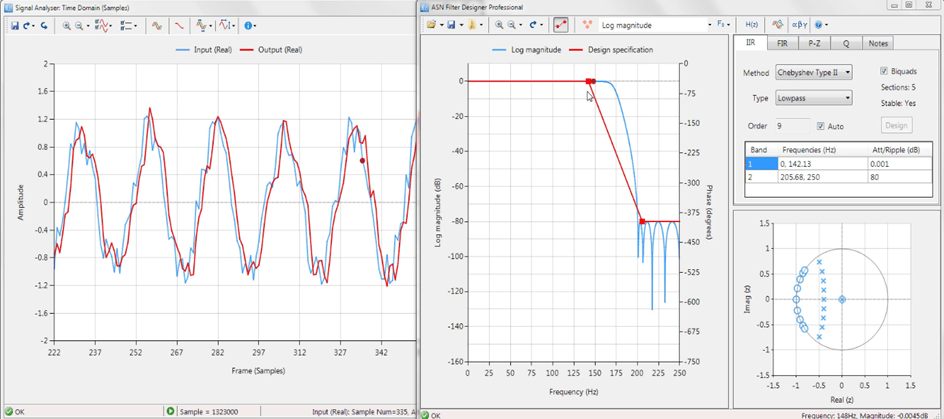

Signal Analyser at work
Transfer function estimation

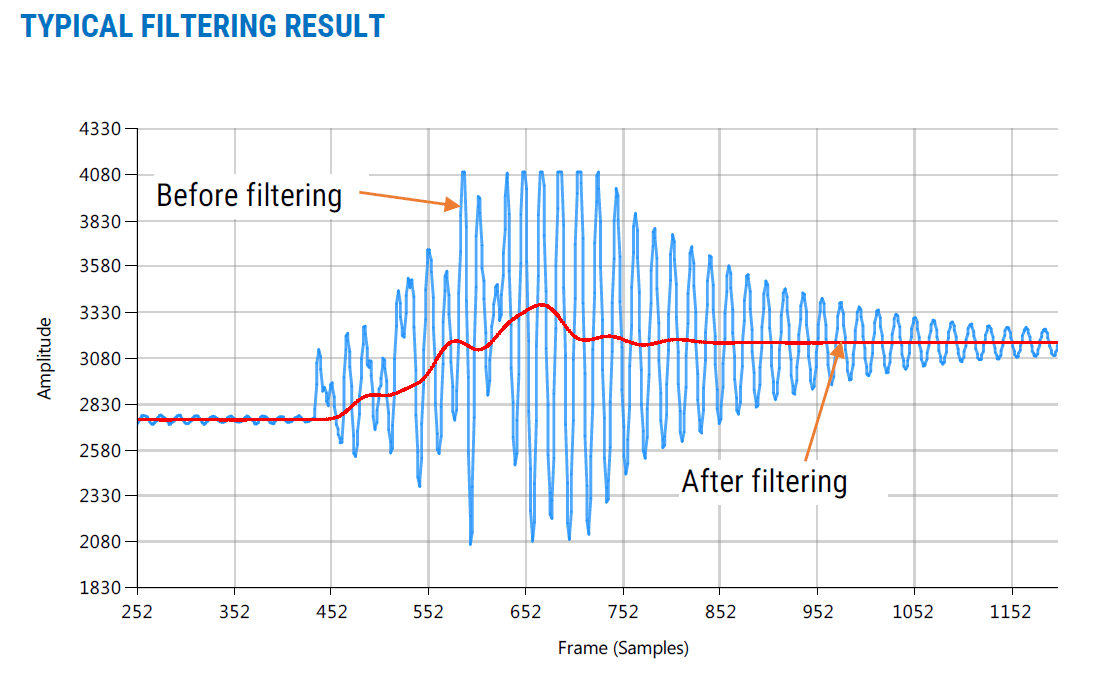

Filter Result Signal Analysis
