ASN Filter Designer: the powerful real-time
DSP experimentation platform for digital filters
Learn all about the ASN Filter Designer and Signal Analyser
Learn all about the ASN Filter Designer and Signal Analyser
Interactively design and validate your IIR/FIR digital filter within minutes rather than hours.
No need to explicitly define technical specifications before you begin designing.
Validate your datasets and filter performance in real-time via the advanced signal analyser.
Interactively experiment with specialised symbolic mathematical transfer functions.
Easily integrate your designed filter blocks with your other algorithms in other domains.
ANSI C SDK for deployment to any STM32, Arduino, MSP430, ESP32, PIC32, Beagle Bone and other Arm, RISC-V, MIPS microcontrollers for direct use in your AIoT application.
Built on 25 years IP experience that has been tried and tested worldwide.
Both frequency domain and time domain charts are fully supported. This allows design verification via transfer function estimation using the cross \((P_{yx})\) and power \((P_{xx})\) spectral density functions. As with all other charts, the signal analyser chart fully supports advanced zooming and panning. Besides, it has comprehensive chart data file export options.

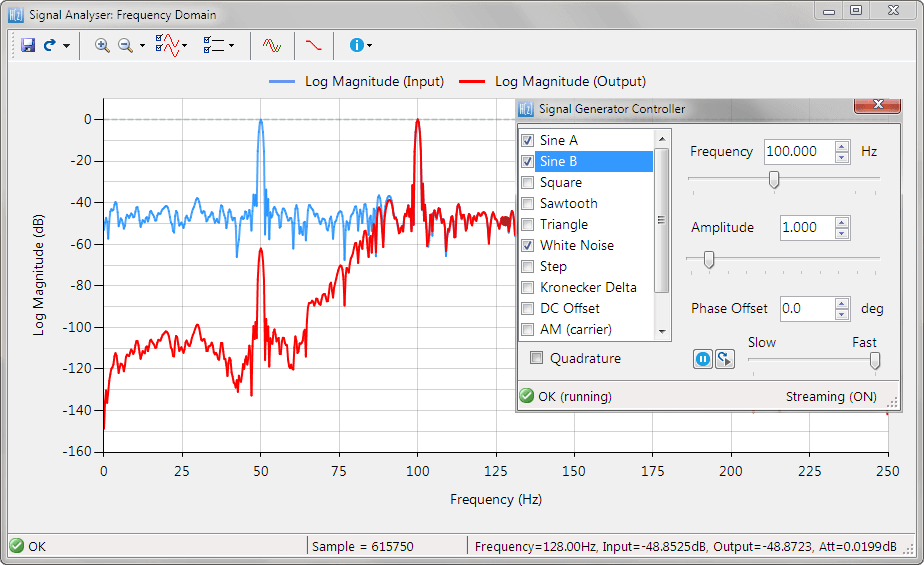

The signal analyser allows designers to test their design on audio, real (user) data or synthetic data via the built-in signal generator. Default data playback is implemented as streaming data. This provides a simple way of assessing the filter’s dynamic performance, which is especially useful for fixed point implementations.
Math methods: autocorrelation, real Cepstrum, Fourier, Windowing and trend removal.
Zero-crossings detector, peak detector and a Savitzky-Golay filter.
Generate a custom test signal: Sine/cosine, square, triangle, sawtooth, step, impulse, white noise, DC offset, AM, or load an external datafile or audio datafile.
Import your own sensor test data (csv or txt) – a data import wizard is also available.
For per sample data evaluation and real-time frame based analysis.
Stream wav audio files up to 48kHz and listen the filtered results in real-time.
State-of-the-art algorithms and highly optimised DSP libraries allow for panning and zooming the frequency response chart in real-time with the mouse. Quickly obtain detailed frequenccy response information, even when the sampling frequency is several hundred MHz, via our specialised ‘ZoomIn’ algorithm.

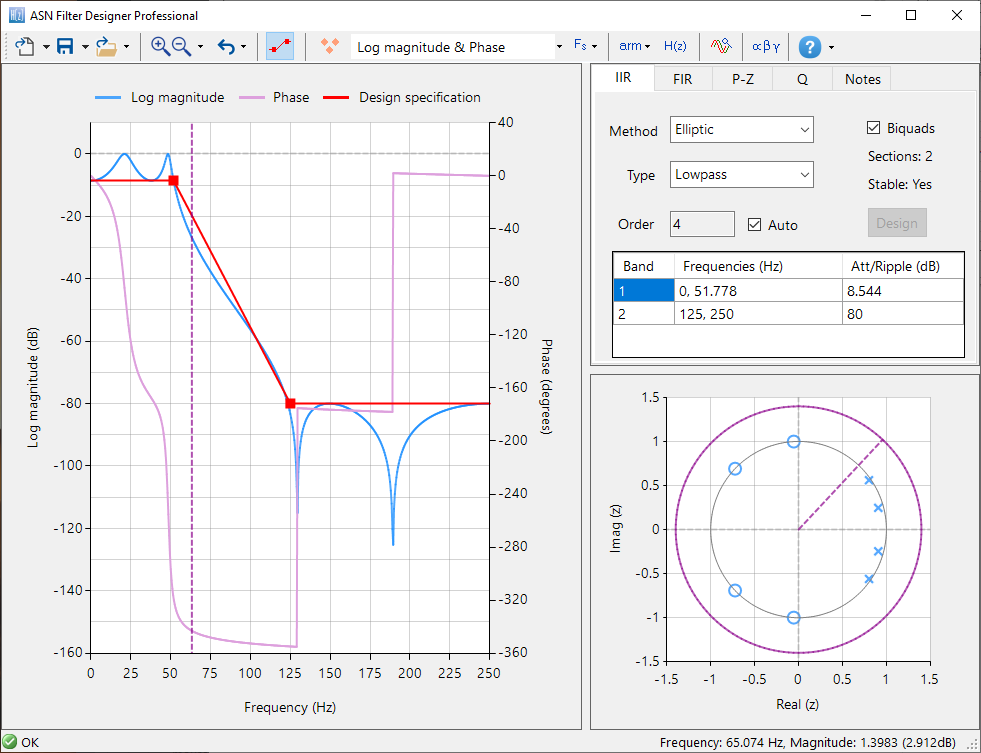

The main FIR/IIR digital filter designer is an extremely easy to use graphical design interface. Specify your technical requirements graphically with a mouse.
Interactively design, validate and deploy your digital filter within minutes rather than hours.
No need to explicitly define technical specifications before you begin designing, just draw and fine-tune your requirements in real-time and let the tool fill in the exact details for you.
Three arithmetic options are available: double and signal precision and Fixed-point arithmetic. The latter may be used for designing filters in embedded applications between 8-32 bits.
Equalise the phase response of even the most challenging IIR filters with the all-pass filter cascade.
Zoom, pan and graphically fine-tune designs to your exact requirements, and see the effect on the frequency response in real-time.

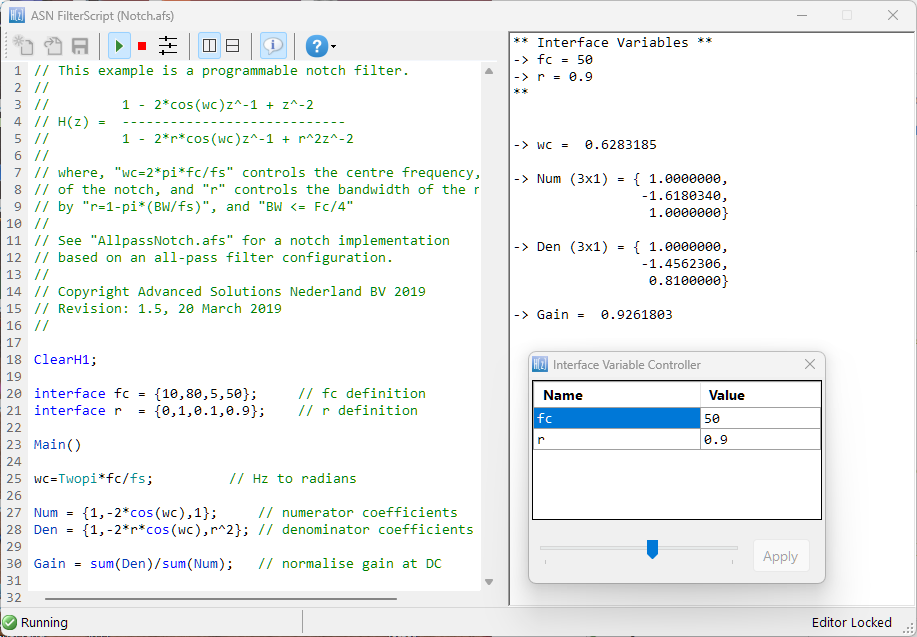

ASN FilterScript allows designers to implement IIR/FIR symbolic mathematical expressions directly. These may be definitions taken directly from textbooks, technical standards or even reference designs. The scripting language itself supports over 82 scientific commands and takes the best aspects of Matlab, Scilab, R and ANSI C.
Symbolic math parser language and simulation IDE (integrated development environment).
Trigonometrical, vector, general math and filter design methods.
Analog-to-digital transforms: Bilinear and matched z-transform.
Butter, Cheby1, Cheby2, Ellip and Bessel, notch and dcremover.
movaver, firwin, firarb, firkaiser, firgauss, and savgolay.
The ‘live IDE’ offers designers the unique and powerful ability to modify parameters on-the-fly with the so-called interface variables, allowing for real-time updates of the resulting frequency response.
Get help on commands within the IDE

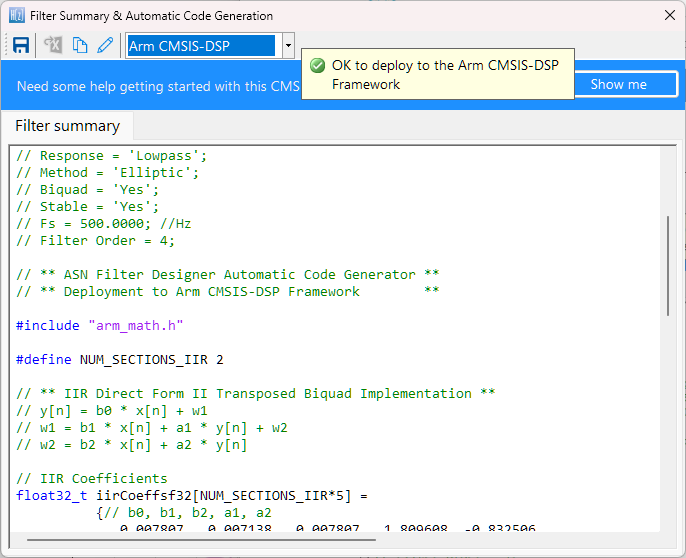

The Arm CMSIS-DSP code generator provides developers a simple way of deploying directly to Arm Cortex -M processors, including the M0, M0+, M3, M4, M23, M33 cores and the newer Arm Helium M55 core for AIoT applications.
Using the ANSI C SDK, any AIoT applications designed on the newer Cortex-M33 and Cortex-M55 cores can also take advantage of extra filtering blocks, double precision arithmetic support, providing a simple way of implementing high performance AI on the Edge applications within hours.
Open source and agnostic code base: In order to allow developers to get the maximum performance for their applications, the ANSI C SDK is provided as open source and is written in ANSI C. This means that any embedded processor and any level of compiler optimisation can be used.
The ANSI C SDK has full support for complex filters, which are seldom supported by many vendors due to their conceptual difficulty. This now allows developers to quickly design and implement solutions for I4.0 applications, such as Coriolis flow metering and powerline harmonic frequency tracking applications.
Easily integrate your designed filter blocks with your other algorithms in other domains. Export designed filters to industry standard software frameworks, such as: Arm CMSIS-DSP (Keil uVision), Python, Matlab, Octave, Scilab, Xilinx Vivado, C and C# .NET using provided royalty free software development frameworks.
As part of our close collaboration with Arm’s DSP/architecture team for AI/DSP solutions, Arm’s resident architecture guru, Joseph Yiu, latest book “The Definitive Guide to Arm Cortex-M23 and Cortex-M33 Processors” features benchmarks and experiments with the ASN Filter designer using CMSIS-DSP for Arm’s latest processors.
Hardware agnostic
The ANSI C SDK framework is hardware agnostic, and provides developers with a comprehensive automatic C code generator for microcontrollers and embedded platforms. This allows developers to directly deploy their filtering application from within the tool to any STM32, Arduino, ESP32, MSP430, PIC32, Beagle Bone and other Arm, RISC-V, MIPS microcontrollers for direct use.
As an added bonus, the ANSI C development framework support supports both real and complex coefficient filters, making it ideal for I4.0 applications, such as flow control and powerline monitoring.
One click export to Arm CMSIS-DSP (easy integration to Keil uVision), and code generation to Python, Matlab, Octave, Scilab, Xilinx Vivado, C and C# .NET. Agnostic hardware support for embedded systems.
The Arm CMSIS-DSP code generator provides developers a simple way of deploying directly to Arm Cortex -M processors, including the M0, M0+, M3, M4, M23, M33 and the newer Arm Helium M55 for AIoT applications.
The ANSI C SDK framework provides developers with a comprehensive automatic C code generator for microcontrollers and embedded platforms. This allows developers to directly deploy their AIoT filtering application from within the tool to any STM32, Arduino, ESP32, PIC32, MSP430, Beagle Bone and other Arm, RISC-V, MIPS microcontrollers for direct use.
Export coefficients to Microsoft Excel for quick integration into 3rd party tools, such as SigmaStudio and Code Composer Studio.
Deploy your designs to your applications with our tried and tested royalty free 3rd party deployment frameworks.
Let the tool help you with your design documentation. Get a detailed specification report of all designed filter blocks for official project documentation, which may be pasted directly into any text editor. Enrich your documentation with high resolution plots, that can easily be exported and combined with the specification report for presentation in Microsoft Powerpoint or Word.

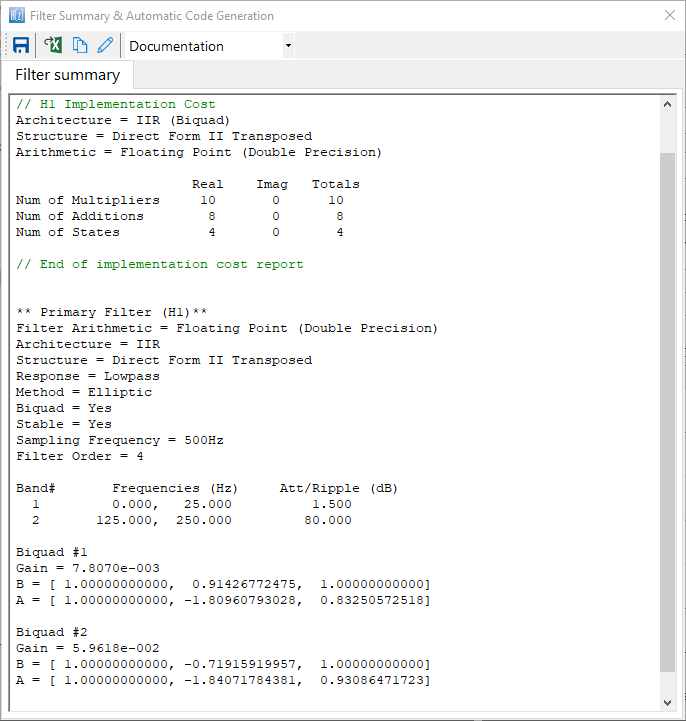

Get a detailed implementation cost report on your filter design. This is ideal for FPGA designers looking to optimise their implementation cost on hardware. The report is updated in real-time, so any changes to the design specification can be instantly assessed.
Get an automatic generated detailed specification report of all designed filter blocks for official project documentation.
Get an automatically generated detailed implementation cost report on your filter design – ideal for FPGA designers!

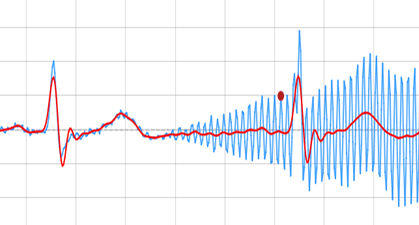

Our biomedical reference designs provide designers with a complete front-end filtering solution for ECG, PPG and EMG measurement applications. Simply import your datasets into the tool and begin experimenting. We provide various examples/reference designs for EMG and ECG including: EMG RMS envelope measurement, the Pan-Tompkins algorithm, baseline removal, powerline interference removal, peak enhancement and TKEO energy measurement. You can interactively fine-tune the filter cut-off frequencies in real-time in order to suit your application requirements.
Deploy the fine-tuned reference design to Matlab, Python, or any 32-bit microcontroller (Arm, RISC-V) in optimised C for direct implementation. Quickly integrate the reference design with your other algorithms, and proceed with your algorithm data analysis in Python or Matlab.
Check out our biomedical reference design starter kits and consultancy for designing and building PPG/ECG applications on the STM32 Discovery kit using the tool’s automatic embedded C code generator.
ECG, PPG and EMG signal processing are just some of the examples of what is possible with the ASN Filter Designer. Download our demo and find out for yourself how easily it works!
You find smart sensors everywhere: homes, cities, infrastructure, farming and medical devices are just some of the examples. With our DSP experimentation tool, you can analyse, filter and experiment with your IoT sensor data in order to achieve optimal sensor performance.
Easily design, analyse and implement digital filters for a variety of IoT smart sensor applications, including: loadcells, strain gauges, torque, pressure, flow, temperature, microphones, geophones, vibration, infra-red gas and ultrasonic sensors. Assess their dynamic performance in real-time for a variety of input conditions.
Perform detailed time/frequency analysis on captured test datasets and fine-tune your design. Our Arm CMSIS-DSP and C code generators and software frameworks speed up deployment to a DSP, FPGA or micro-controller. Find out more
Download the demo and see for yourself how ASN Filter Designer can help you with your DSP projects!

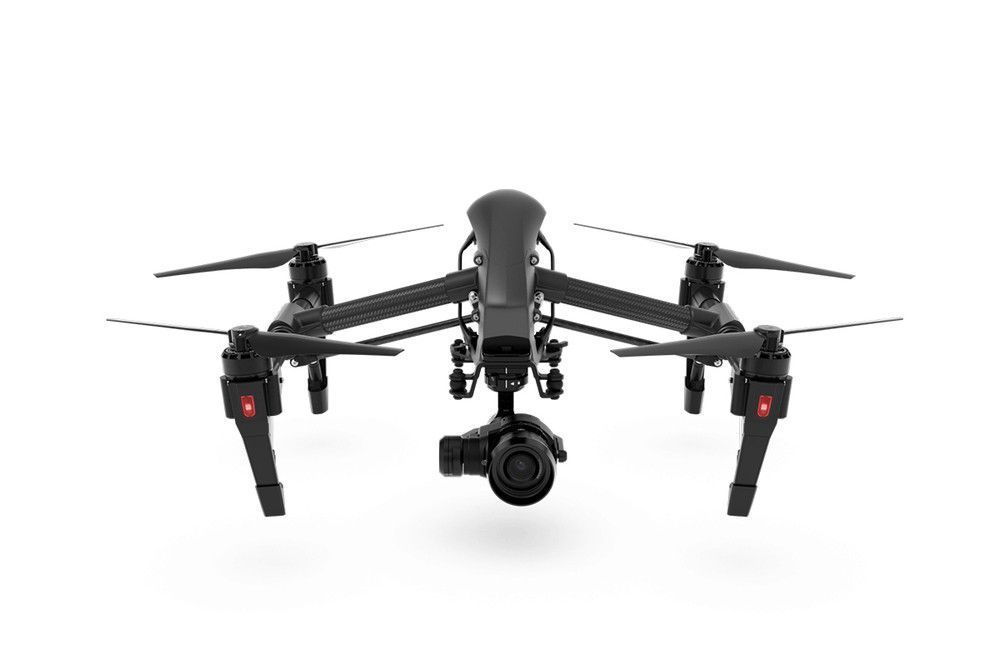

Easily design, analyse and implement filters for a variety of drone sensor applications, including: loadcells, strain gauges, accelerometers, pressure, temperature, and ultrasonic sensors. Assess their dynamic performance in real-time for a variety of input conditions.
Easily experiment with speed and position control using sensorless BLDC (brushless DC) motors based on back-EMF filtering. Then, see the results in real-time for various IIR, FIR and median (majority filtering) digital filtering schemes. The tool’s signal analyser implements a robust zero-crossings detector. This allows engineers to evaluate and fine-tune a complete sensorless BLDC control algorithm quickly and simply.
Perform detailed time/frequency analysis on captured test datasets and fine-tune your design. Our Arm CMSIS-DSP, C code generators and software frameworks speed up deployment to a DSP, FPGA or microcontroller.
Drones use lots of sensors, and most challenges will be solved with them! ASN Filter Designer provides you with a simple way of improving your sensor measurement performance with its interactive design interface.
Download our demo and see for yourself.
Experiment with a variety of equalisation, noise cancellation and sound effect audio filtering algorithms. Perform data analysis in the frequency domain. We also support specialised methods, including Cepstral analysis on the streaming data.
Import your own wav audio files (mono or stereo up to 48kHz) for streaming. Then, you can modify the filter characteristics in real-time while listening to the filtered audio stream.
Download the demo to find out how you can benefit from this powerful DSP tool.
A powerful learning platformfor DSP, which is suitable for many international Bachelors and Masters programmes in STEM (e.g. Electrical Engineering and Applied Sciences). The supporting user guide and application notes provide many practical examples. These can easily be integrated into tutorial exercises or classroom examples.
A low cost educational version of the designer is available. This version allows academics to experiment with the examples.
Because teaching STEM in most cases means teaching algorithms, we have created tailor made study material for your STEM course. Now you can teach DSP without the need for teaching algorithms. You can easily integrate this hands-on material in your DSP theory for your tutorial sessions.
The tool is also an invaluable experimentation platform. Researchers and post docs can quickly converge to an optimal solution in a hassle free way by using the powerful scripting language and simulation functionality or even export their designs to Matlab or Python for further analysis. For lab experiments, deploy your design via our C code generator to an Arm microcontroller (e.g. STM32 Discovery kit) for real-time experimentation.
Download the demo and try for yourself how ASN Filter Designer can help you with your DSP projects!
“Excellent DSP tooling! Highly recommended!” Find out more
An outstanding digital filter design application that appears to be the Swiss Army Knife of filter design software packages. Read more
“The price of ASN Filter Designer is a fraction of what Matlab costs, and the time spent writing, debugging, and enhancing a program that does what ASN Filter Designer does exceeds the cost of the product. A very satisfied customer indeed!”
“Although a number of commercial filter-design software tools are available, ASN Filter Designer is an excellent choice for software developers who are not familiar with filter design.”
“The ASN Filter Designer is a powerful DSP experimentation platform.” Find out more
“Advanced Solutions Nederland’s biomedical workshop is a great example of how our BSc. students can get hands on involvement of an innovative product, that is set to advance the development of biomedical signal analysis and filter design.”
“Instead of lengthy calculations to generate our coefficients we simply specify our filter response in ASN Filter Designer which instantly generates the coefficients in an ARM CMSIS DSP library compatible format, this means we can go from filter spec to hardware testing in minutes. I’m thoroughly recommending this product to anyone involved in signal processing using the Arm Cortex-M.”
“ASN Filter Designer’s automatic code generation to Xilinx Vivado and implementation cost report, cuts our development time when designing FIR digital filters in our Xilinx FPGAs, and allows us to concentrate on our application, rather than being tied down with implementation issues.”
“After evaluating a few tools for building digital filters, my choice fell on the ASN Filter Designer… It is an outstanding tool to evaluate and create Digital Filters, saving time both in math calculations and testing. Working for the most in Audio Applications on Cortex-M cores, just the fact that it can generate CMSIS-DSP ready files, it reduces the TTM for my customers, achieving a perfect result…”
“ASN Filter Designer helped me breakthrough some issues I was encountering filtering neural data. It streamlined my filter design, simulation on real data, and code generation for an embedded, real-time application. Having all of these features in one place made my life so much easier.”
